Out dry mix
concrete batching plant marketed under CONCRETEMASTER is
a fully integrated
and modular plant which can be shifted
without much hassle. Excellent quality and value for low
entry investment
makes CONCRETEMASTER an ideal construction
partner.
Low
maintenance, higher reliability and 100% parts back-up….. a hallmark of our
CONCRETEMASTER
The CONCRETEMASTER has undergone continuos development and
refinement since its
original inception and is often
described as the backbone of SET’s plant
series.

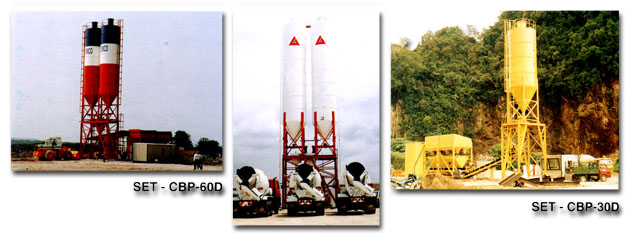

The CONCRETEMASTER model SET-CBP-60D is
configured to run optimally for a production
capacity of up
to 60m³ /hour. Model SET-CBP-30D for production up to 30m
³/hour.
| |
SET-CBP-60D |
SET-CBP-30D |
| Plant
Capacity |
60m³ /hour |
30m³ /hour |
| Batching Capacity |
5
- 6m³ /batch |
3m³ /batch |
| Cement Storage Silo Capacity |
2 X 100 tons / 2 X 50 tons |
1 X 50 tons |
| Sand Storage Hopper |
2 compartments X 30 tons each |
2 compartments X 30 tons each |
| Water Storage Tanks |
1 X 5,000 gallons |
1 X 5,000 gallons |
| Cement Weighing Range |
0 – 3,000 Kg |
0 – 1,500 Kg |
| Sand Weighing Range |
0 – 12,000 Kg |
0 – 6,000 Kg |
| Water Weighing Range |
0 – 1,200 Kg |
N/A |
| Water Flow Meter Range |
N/A |
0 – 1,000 liter |
| Discharge Method |
Direct shooting |
Direct shooting |
| Discharge Height |
2,700mm |
2,700mm |
| Sand Hopper Loading |
Direct loading |
Direct loading |
| Sand Hopper Loading Height |
4,500mm |
4,500mm |
| Sand Batching Method |
Direct gravity flow |
Direct gravity flow |
| Sand Weighing System |
4 Load Cells suspended system |
4 Load Cells suspended system |
| Cement Batching Method |
2 X Screw Conveyor |
1X Screw Conveyor |
| Cement Weighing System |
3 Load Cells system |
3 Load Cells system |
| Water Weighing System |
3 Load Cells system |
Semi Auto Flow Meter |
| Air Compressor |
5.5 Hp |
5.5 Hp |
| Control Cabin |
10’ X 10’ Extended View |
10’ X 10’ Extended View |
| Control System |
Automatic Material Cut Off /
Optional Computerized
System |
Automatic Material Cut-Off /
Optional Computerized
System |
| Electrical Requirement |
45 KW |
38 KW |
| Painting |
Customer’s choice |
Customer’s choice |
|
