S.E.T. RC3 Load Cell
Important Features
Capacities: 7.5t to 300t.
High accuracy.
Total stainless steel construction.
Complete hermetic sealing.
Protection IP 68.
High input resistance: 1100Ω.
W&M certified for 4000 intervals. (PTB: D09-99.09 Rev.2)
Calibration in mV/V/Ω.
Easy cable replacement.
Complete range of loading hardware available.
Factory Mutual approved.
Options
Explosion protection zone 0, 1, 2 and 20, 21, 22 ATEX.
Integrated surge arrestors (4x).

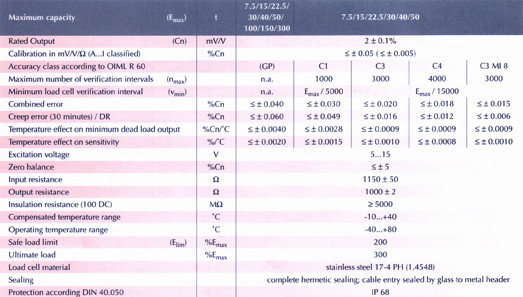

RC3 Specifications

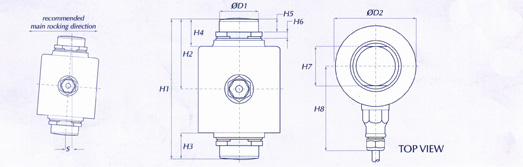

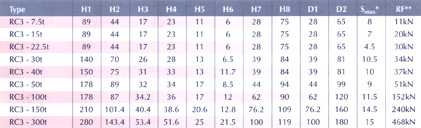

Dimensions
*S
max
=
maximum lateral displacement of load introduction.
Recommended gap 2...3 mm for 7.5...22.5t, 3...5mm for 30...300t
**RF =
restoring force at S
max
and E
max
All dimensions in mm. Dimension and specifications are subject to change without notice.

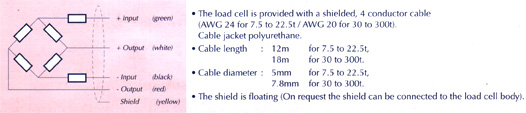

Wiring
