Single Ended Shear Beam
- Nickel Plated
- Tool Steel
- From 500Kg to 10 Tonne

Dimensions


The S.E.T-SB Series is an environmentally sealed shear beam load cell which is excellent for use in floor scale, batching plants, truck scale and other out-of doors weighing and testing applications.
Environmental protections are provided by special waterproof potting, metal covers and corrosion resistant nickel plating.
An integral mounting step removes the need for troublesome mounting plates and ensures optimum bolting conditions. Cells are supplied with an integral 6 meters cable.

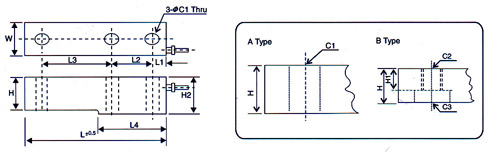

OUTLINE DRAWING

Model

S.E.T.SB

Rated Capacity 500Kg. 1,2,3,5,10t
Rated Output 3mv/v ± 0.25%
Non-linearity 0.03% R.O.
Hysteresis 0.03% R.O.
Repeatability 0.03% R.O.
Excitation 10V nomical, 15V max.
Zero Balance ±1% R.O.
Resistance Input
Output 		400 W ± 20 W
350 W ± 3W
Temp. Range Compensated
Operating 		-10 ~ 60°C
-30 ~ 70°C
Temp. Coef. Output
Zero 		±0.02% Load/10°C
±0.03% R.O./10°C
Safe Overload Safe Overload
Ultimate Overload 300% R.C.
Safe Sideload 100% R.C.
Cable Ø5mm x 4C x 6mm
500KG, It /0.4mm
Deflection 2,3t/0.6mm, 5t/0.8mm 10t/1.1mm
Insulation Resistance Minimum @ 50V DC 2000 MW

Cable Color Code

(compression :+ output)

Red +Excitation
White - Excitation
Green + Signal
Blue -Signal Bare Shield

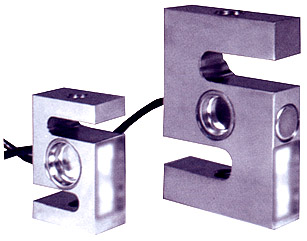

S-Beam, Nickel Plated
Tool Steel
from 50 to 5000kg

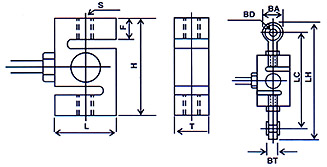

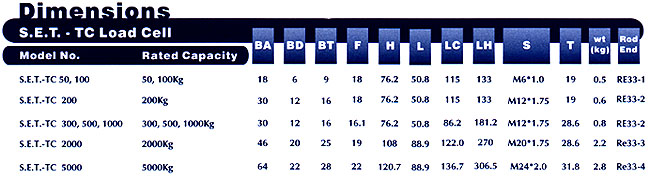

Outline Drawing
Tension Mounting Assembly
Cable Color Code
(compression :+ output)
Red +Excitation
White - Excitation
Green + Signal
Blue -Signal Bare Shield

The Model S.E.T. - TC Series is an hermetically sealed nickel plated tool steel “S” beam load cell designed for tension and compression. The IP67 welded construction will withstand wash down and high humidity conditions.
This cost effective products finds application in a wide range of hostile environments, bin, belt scale and is ideal for the conversion of existing mechanical scales.

Model

S.E.T.-TC

Rated Capacity 50, 100, 200, 300, 500, 1000, 2000, 5000 Kg
Rated Output 2mv/v ± 1%
Non-linearity 0.03% R.O.
Hysteresis 0.03% R.O.
Repeatability 0.02% R.O.
Excitation 10V nominal, 15V max.
Zero Balance ± 1% R.O.
Resistance Input
Output 		350 W ± 5 W
350 W ± 5 W
Temp. Range Conpensated
Operating 		-10 ~ 50°C
-20 ~ 70°C

Model

S.E.T.-TC

Temp. Coef. Output
Zero
 ± 0.01% Load/10°C
± 0.05% R.O./10°C
Safe Overload
 150% R.C.
Cable Ø5mm x 4C x 3mm
Creep Error (20min) 0.03% max. Load
Insulation Resistance
Minimum @ 50V DC
50,100, 200Kg
 2000 MW
Environmentally Sealed (IP65)
Protection
Class
300, 500, 1000, 2000, 5000Kg		 Hermetically Sealed (IP67)
