 Built for durability without compromising on either quality and accuracy, the modular Concrete Deck TRUCKMASTER is the sure companion in helping you to put your weighing operation fully under control |
What's important in the purchasing decision
of a vehicle scale today? Accuracy, speed, dependability, flexibility and value
are among the most important considerations. The S.E.T. TRUCKMASTER Concrete
Deck Pitless Weighbridge is designed and manufactured to address these important
issues and more.
Believing that the
weighbridge is the key area where significant savings can be made, the
TRUCKMASTER Concrete Deck Pitless Weighbridge combines unequalled performance of
digital technology with an above ground weighbridge and cost effective footer
foundation design to provide a superior value to your investment.
The
TRUCKMASTER gives you the long term reliability, accuracy, performance and
serviceability you have every right to expect from S.E.T. weighbridge
system.
A thorough and deep understanding of weighing system enable us to
bring out the finer details in combining today's weighing technology with
hardware specific to application, providing the most practical and economical
solutions to your needs. We design and build weighbridge that, from the first
inception of the project have but only one goal, that is to make you more
profitable. We called it "Profit Engineering".
We take great pride in the
exceptional quality and value of every weighbridge that we deliver. It's not
easy for you to see the extra quality that produces this top value. It's the
unseen that makes the difference…..the processes, manufacturing methods and the
attitudes that make us one of the most established and longest serving weighing
company in the country.

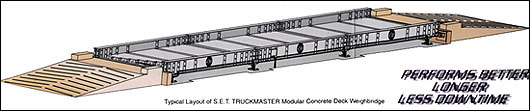

 Typical Layout of S.E.T. TRUCKMASTER Modular Concrete Deck Weighbridge |
Features and Construction
Constructed in standard
modules of 6m and 7.5m long, virtually means weighbridge of any sizes can be
configured to meet your specific requirement; there is not even a need to
compromise.
Unique design concept offers a high degree of flexibility
where the weighbridge can be configured optimally to run either in analog mode
for reliable low entry investment or in truly digital mode for those requiring
the perfection in technology. Or, you can change from analog to digital mode
when situation fits in, without even a need to modify your existing
bridge.
Modular Design ensures future expandability; you can, in future,
increase the bridge length or change to newer weighing technology
readily.
Heavy Duty Composite Concrete Deck ensures unparalleled
workability even in the toughest environment and an added side rail as extra
security feature.
Installed above ground with 300mm of clearance
underneath the bridge makes new installation and future maintenance works
easier.
Minimization of excessive ongitudinal and transverse impact
forces by employing adjustable bumper stoppers.
Designed and built to
15,000 kg tandem axle load capacity, ensures a reliable workability under heavy
loading patterns.
Intergrating readily with our Computerized Weighing
System to provide you the weight and data information you need for complete
control of your vehicle weighing operation. Specialized weighing software
package that fits your industry perfectly an be engineered to help your business
to be more profitable.
Employing only the highest quality sensors and
electronics to complete the package ensures your investment starts paying for
itself the moment they are put into use.
Wide spectrum of auxiliary
equipment to further enhance our standard offer, so every purchase fits
perfectly to your needs.
Backed by one of the longest serving and largest
company in weighing industry, you are assured that your investment gets proper
attention and most importantly, you would never need to suffer from extended
breakdown time….. as what you're really weighing is actually money….in another
form.
DigiTOL
Imporving reliability and accuracy with the true
digital technology employed in the DigiTOL Power Cell. The built-in
microprocessor monitors the load cell performance and automatically corrects for
errors caused by creep, nonlinearity and temperature variance. And most
importantly, the built-in microprocessor also performs self-diagnostic program
that simplifies service and maintenance. It's like having a scale technician
monitoring your scale 15 times a second, 24 hours a day.
The Power Cell
provides inherently better protection against static electricity and voltage
changes. Transmitting signals at about six million times stronger than
conventional cells, signal corruption along the transmittal path is greatly
reduced, if not altogether eliminated, providing you unsurpass technology
perfection.
Hermetically sealed in stainless steel housing to provide
extreme reliability even in the toughest working environment so that it can
accurately and reliably determines weight, for years to
come.
Standard Weighbridge
Configuration
| All standard configured weighbridges are of modular type and built from combinations in multiples of standard 6m and 7.5m modules. |
| Designed tandem axle capacity are 15, 18 and 21 tons respectively for the standard, heavy duty and extra heavy duty modules. |
| Minimum digital increment (Div.) are set conforming to local Weight and Measures Regulations. |

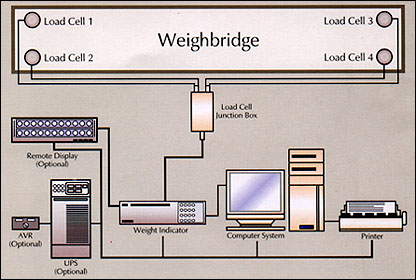

Typical Weighbridge Installation
 |
Highly flexible system with extensive line of options
that features widest spectrum of customization to meet specifically your needs,
accurately and economically, without even a need to compromise. We built
comprehensive systems that make your business more profitable.
|
|
