S.E.T. RC3D Digital Load Cell

Important Features
  • Capacities: 30t to 50t.
  • High accuracy.
  • Easy communication and system setup..
  • Additional RC3D system components available: KPF-D junction box and FT-03 weight indicator or others.
  • Total stainless steel construction.
  • Complete hermetic sealing, protection IP 68.
  • Easy cable replacement.
  • Complete range of loading hardware available.

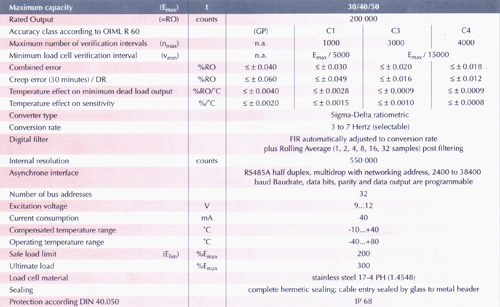

    RC3D Specifications

    Dimensions
    *Smax = maximum lateral displacement of load introduction.
    Recommended gap 3...5mm
    **RF = restoring force at Smax and Emax
    All dimensions in mm. Dimension and specifications are subject to change without notice.

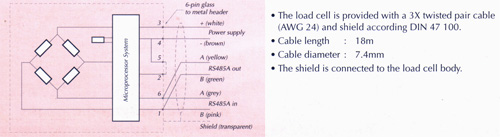

    Wiring
