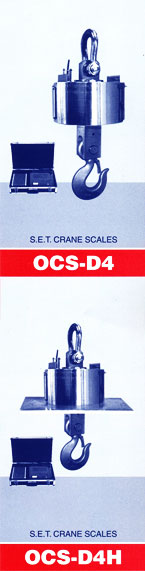

OCS-D4, OCS-D4H
Main Features
- Function of sorting storage. It can save 100 products' weighing value for 99 times per product. But the total accumulation times are 1664.
- Function of accumulation and minus accumulation (minus value and zero can not be accumulated). It can accumulate by sorting, and delete any wrong accumulating value.
- In order to ensure the mutual exchange between the instru-ment and kinds of scales, the receiver's frequency can be adjusted by keyboard.
- Function of printing & communication. The instrument itself can print measurement list. And it can communicate with computers through RS-232 joint.
- Function of taring and tare pre-setting.
- Function of continuously weighing.
- Function of overweighing alarm. When the weigh is oves scale span (including the weight of peeling), the buzzer will alarm.
- Function of low-pressure instruction. The battery icon at the top of the screen can directly "LOW BATTERY" at the left top of the screen in order to remind users to charge in time.
- Function of data keeping. After shutdown, the setting and weighing value will be kept.
- Backlight display, clear in darkness
- Function of printing. A micro-printer is installed in the indicator.
- Both direct current and alternating current are used, installed charging circuit, automatically charging is alternating current is used.
Main Functions (OCS-D4H)
- High strength steel shell, high-tension shackle and hook.
- Excellent capacity in resisting electromagnetic disturbance, can be applied directly to electromagnetic chuck.
- Excellent dynamic weighing ability.
- Optional thermal insulation devicethe proper distance between the scale and the hoist hot object: 1400°C---1.8m; 1600°C---2.0m
Technical Parameter
| Weighing Accuracy |
Comply with OIML (III) |
| Operation time (with fully charged battery) |
40 Hours |
| Safe Over-Load |
150%F.S |
| Damaging Over-Load |
300%F.S |
| Working Temperature Range |
-30~60°C |
| Operation Humidity |
<95%R.H |
| Display refresh rate |
6 times per second |
| Scale battery |
6V/4.5AH rechargeable battery |
| Indicator battery |
220V AC/50Hz or 6V/2.5AH
(rechargeable battery) |
| Wireless transmission distance |
no less than 200 meters without any obstacles |
| Data saving |
The saving times of measuring data are 1664. |
| Wireless frequency range |
230MHz or 450MHz
(2 frequency range, 15 frequency points) |
Main Specification
| Exterior dimension of OCS-D series (mm) |
Weight(kg) |
| Capacity |
Division |
Length |
Ring radian |
Length Width |
Scale casing height |
Lifting hook |
Round shell height |
Diameter |
|
|
|
|
| (t) |
(kg) |
|
|
|
|
|
|
|
D3 |
E2 |
D4 |
D4H |
| 2 |
1 |
560 |
55 |
100 |
40 |
145 |
270 |
19.4 |
14.4 |
17 |
17 |
27 |
| 3 |
1 |
560 |
55 |
100 |
40 |
145 |
320 |
19.4 |
14.4 |
17 |
17 |
27 |
| 5 |
2 |
718 |
90 |
100 |
50 |
190 |
320 |
38.6 |
33.6 |
36.2 |
36.2 |
44.6 |
| 10 |
5 |
850 |
90 |
120 |
60 |
190 |
320 |
45.8 |
40.8 |
43.4 |
43.4 |
55.5 |
| 15 |
5 |
980 |
210 |
150 |
90 |
190 |
320 |
63.4 |
58.4 |
61 |
61 |
77 |
| 20 |
10 |
1030 |
220 |
230 |
90 |
190 |
320 |
78.4 |
73.4 |
76 |
76 |
92 |
| 30 |
10 |
1350 |
250 |
280 |
100 |
210 |
370 |
111.4 |
106.4 |
109 |
109 |
125 |
| 50 |
20 |
1600 |
330 |
350 |
150 |
290 |
500 |
330 |
325 |
323 |
323 |
343 |
|
