Reach Stacker Weigher
 |
 |
| • Dynamic weighing • Large colour display • Icon based menu • Navigation wheel • Various interfaces • External camera • Reusable system • Compliant SOLAS |
• Dynamic weighing • Excellent value for money • Reliable • Small dimension • User friendly • Simple installation • Reusable system • Compliant SOLAS |

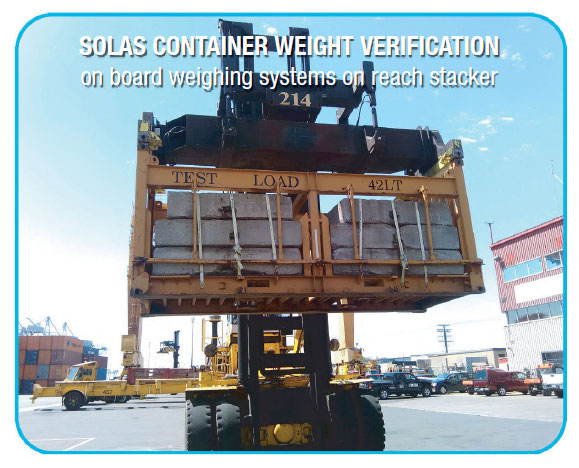

On-board weighing systems for reach stacker that find their typical application in harbors and container handling area where the accurated weighing is required, both for economic payload calculation of the loaded material and for optimizing the load of different vehicles following the SOLAS container weight verification. Our systems allow to optimize the loading and to know the exact weight of the container.
| Technical data | E.T. | Vision Evolution |
| Power supply | 10÷30 Vdc | 10÷30 Vdc |
| Working temperature | -20°÷+70° C | -20°÷+70° C |
| Display | 3,5’’ graphic color LCD | 5,7” graphic LCD |
| Serial port | - | RS232/C + 1 auxiliary |
| Resolution | 1÷100 Kg | 1÷100 Kg |
| Dimensions | 150x125x91,5 mm | 160x210x86 mm |
| Protection level | IP65 | IP65 |
| Optional |
Paper roll printer | Paper roll or ticket printer |
| - | Software data transfer to PC | |
| - | Memory Card | |
| - | Transmission data | |
| - | External camera |

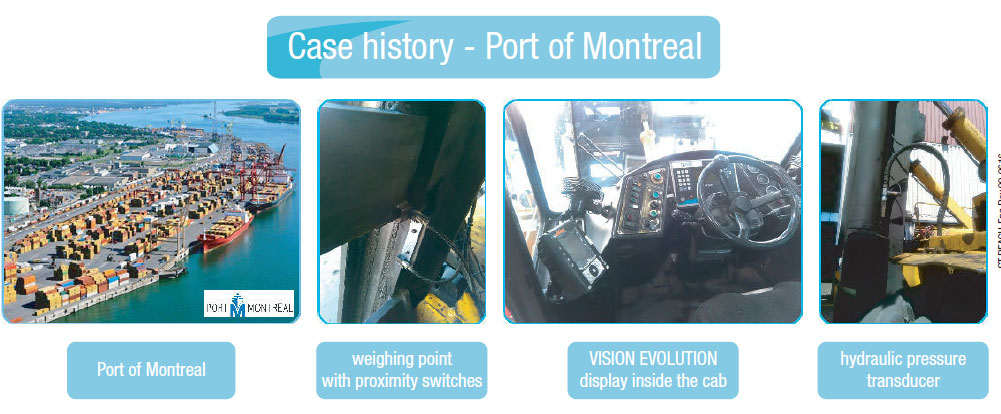

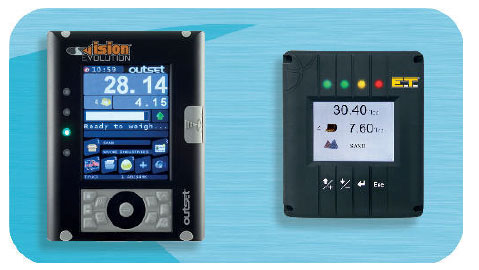

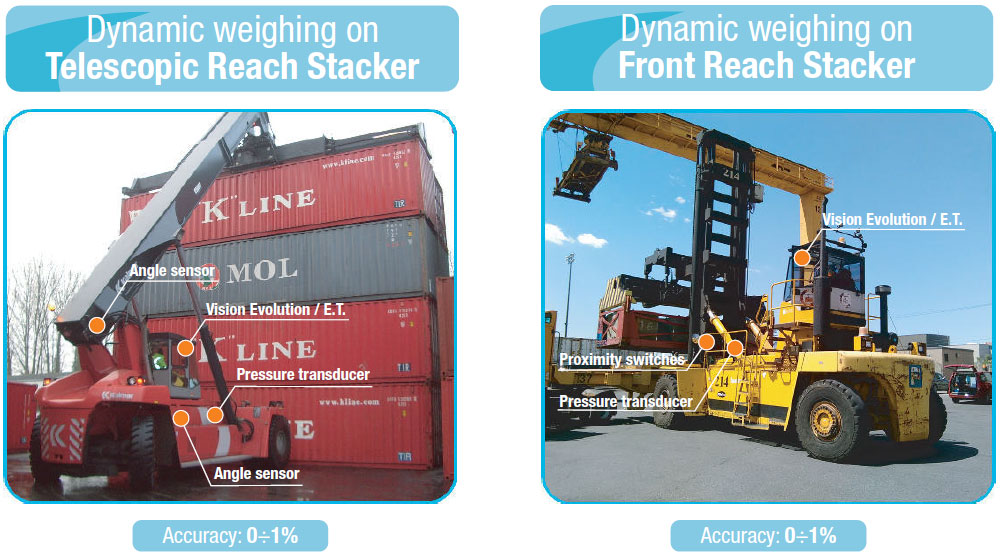

VISION EVOLUTION and E.T. are the ultimate innovations in on-board weighing systems with the large colour graphics display for real-time viewing of data with an user-friendly icon menu. Developed for the FRONT container handling application, with the aid of pressure and proximity sensors technology, or for the TELESCOPIC container handling application, with the aid of pressure and angle sensors technology, the electronics provides complex functions for the real-time display of partial and total weight and weight counts, without operator intervention. Accuracy approved following the SOLAS container weight verification.
