S.E.T.®-QSd ver.2

Stainless Steel Digital Load Cell for Truck Scale Application


OIML-R60 Approved Load Cell
Note: Stainless Steel Top and Bottom Mounting

Features

  1. Reliable anti-rotation, be with good stability;
  2. Higher combined accuracy, good performance of anti off-center load error;
  3. Higher protection class, structural durabilities;
  4. Be with good performance of anti surge, can be applied into different environment.

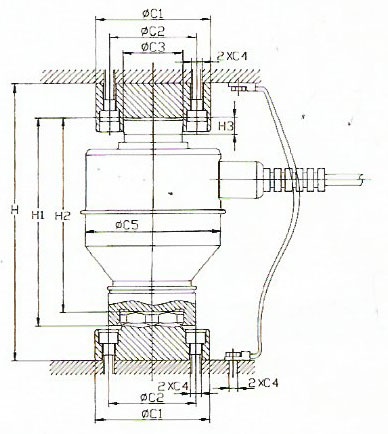

Dimension, Unit : mm
 Capacity H H1 H2 H3
10, 15, 20,
30, 40, 50,
60		 200 150 140 12
C1 C2 C3 C4 C5
83.5 64 43.8 M8 99



Characteristics and Specifications

 Accuracy :  C3
 Repeatability : 0.0% F.S.
 Creep error (30 min.) :  0.02% F.S
 TCO :  0.015% F.S. / 10°C
 TC SPAN :  0.015% F.S. / 10°C
 Data refresh frequency :  10Hz
 Baud rate :  9600BPS
 Operating Temperature :  -30°C - +70°C
 Safe Overload :  150% F.S.
 Rated Excitation :  9~12V DC (20V Max.)
 Insulation Resistant :  5000M _ (50V DC)
 Material :  Alloy steel, Stainess steel
 Communication mode :  RS 485
 The max. signal transmission distance :  1200m
 Seal type :  IP68
 Cable Color Code :  + Excitation Blue
 - Excitation  Black
 + Signal      White
 - Signal       Red
