S.E.T®.- QS LOAD CELL

S.E.T.®- QS LOAD CELL

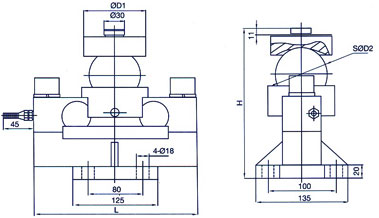

SET-QS load cell

Rate Load 5 10, 15, 20, 25, 30 40
D1 68 88 88
D2 50.8 67.2 76.2
H 168.8 224.7 230.7
L 224 240 240



SET-QS Load Cell

Technical Parameter | Exc+(REd); Exc-(Black); Sig+(Green); Sig-(White)
Rated Load 5, 10, 15, 20, 25, 30, 40, 50t Operating Temp Range -30~ + 70°C
Sensitivity 2.0 ± 0.002mV/V Safe load limit 150, 120(40~50t)%F.S
Total error ± 0.02%FS, ± 0.03%F.S Overload limit 300,200(40~50t)%F.S
Creep(30min) ± 0.02%F.S Recommend excitation 10~ 12V DC
Zero balance ± 1%F.S Maximum excitation 15V DC
TCO ± 0.02%F.S/10°C Protection Class IP67(5t),IP68(10~50t)
TC SPAN ± 0.02%F.S/10°C Construction Alloy Steel
Input resistance 150 ± 10Ω Cable
Output resistance 703 ± 2Ω, 703 ± 5Ω(L≥15m) Lenght=L:5.2m(5t), 8m(10t), 12m(20, 25, 20T), 16m(40~50t)
Insulation resistance L≥5000MΩ Diameter: Ø 6mm
