SET Weighing

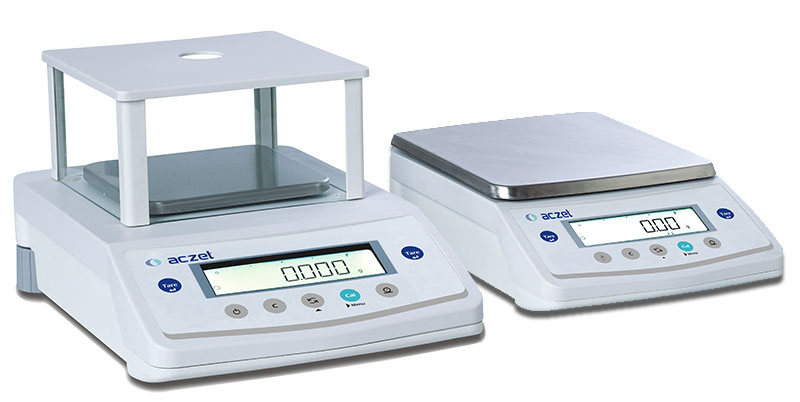

New and improved precision series incorporates unique and unequaled High end technology built to match the highest international standards.

Standard Features:

• High Contrast LCD Display with LED Backlight for easy veiwing.
• Standard RS 232C lnterface. USB is Optionol
• Hanger for Below Balance weighing.
• It performs internal calibration and adjustment automatically with changes in ambient temperature by specific value on defined time interval hos elapsed thanks to Perfect Self Auto Calibration in CY and CY-C Models.
• Complies to GLP / GMP.
• Unique & unequaled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards.
• Only a single cable is required to transfer weighing data directly to windows or MS office applications.

Statistic Calculation Function:

This smart feature enables the user to obtain the statistics of the data stored in the scale including details such as number of readings, minimum value, maximum value, standard deviation, difference and Coefficient of variance.



Model	CY 223	CY 323	CY 513	CY 723	CY 1003	CY 223C	CY 323C	CY 513C	CY 723C	CY 1003C
Capacity	220 g	320 g	510 g	720 g	1000 g	220 g	320 g	510 g	720 g	1000 g
Readability sd(+/-)	0.001 g	0.001 g	0.001 g	0.001 g	0.001 g	0.001 g	0.001 g	0.001 g	0.001 g	0.001 g
Repeatability (+/-)	0.001 g	0.001 g	0.001 g	0.001 g	0.002 g	0.001 g	0.001 g	0.001 g	0.001 g	0.001 g
Linearity (+/-)	0.002 g	0.002 g	0.002 g	0.002 g	0.002 g	0.002 g	0.002 g	0.002 g	0.002 g	0.002 g
Pan Size (mm/inch)	128 x 128 / 5.0" x 5.0"



Model	CY 6101	CY 8101	CY 1202	CY 2202	CY 3102	CY 4102	CY 6102	CY 2202C	CY 4102C	CY 6102C
Capacity	6100 g	8100 g	1200 g	2200 g	3100 g	4100 g	6100 g	2200 g	4100 g	6100 g
Readability sd(+/-)	0.1 g	0.1 g	0.01 g	0.01 g	0.01 g	0.01 g	0.01 g	0.01 g	0.01 g	0.01 g
Repeatability (+/-)	0.2 g	0.2 g	0.01 g	0.01 g	0.01 g	0.01 g	0.02 g	0.01 g	0.01 g	0.02 g
Linearity (+/-)	0.2 g	0.3 g	0.02 g	0.02 g	0.02 g	0.02 g	0.03 g	0.02 g	0.02 g	0.03 g
Pan Size (mm/inch)	198 x 205 / 7.8" x 8.0"
