Aczet Standard Weight & Weight Sets

aczet

Aczet Standard Weight & Weight Sets


  • According to OIML-R111 standard
  • Outstanding Cost Performance Ratio.
  • Modern Calibration Methods Allow Exact Calibration and higher accuracy.
  • Calibrated by NPL / NABL / RRSL / DKD (Germany) / NVLAP / UKAS (UAS) Accredited.
  • E1 to M1 Class Weight with or without certification.
  • Material density of the weights is 8000kg / m3, air density is 1.2 kg / m3, and measuring temperature is 20°C.
  • A balance con never be more accurate then the test weight, used Nominal to adjust it, it depends on its tolerance.
    Here's how to find the right test weight

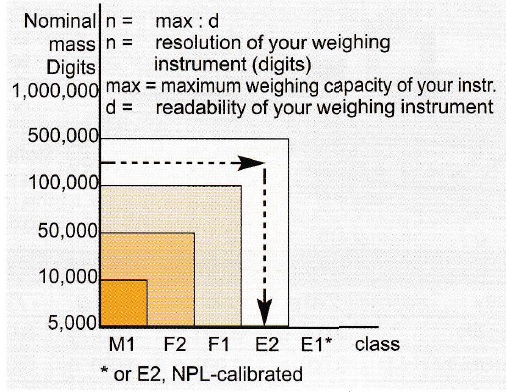

  • Just determine the number of digits specified for your weighing instrument's resolution, then read off the particular accuracy class that your test weight must have on the graph provided below.
  • The weight value of your test weight should be more than 80% of the maximum capacity of your weighing instrument.

Example : Suppose your weighing instrument has a capacity of 2,200g and a Readability of 0.01g. this yields 220,000 digits, which correspond to a class E2 test weight. Since 80% of 2,200 g is 1,760g, you need to round to round it to a weight value of 2,000g.



Single Weight

 Mass Weight  Part No.
 E2 F1  F2
1 g  117-01 126-01 137-01
2 g 117-02 126-02 137-02
5 g 117-03 126-03 137-03
10 g 117-04 126-04 137-04
20 g 117-05 126-05 137-05
50 g 117-06 126-06 137-06
100 g 117-07 126-07 137-07
200 g 117-08 126-08 137-08
500 g 117-09 126-09 137-09
1 kg 117-11 126-11 137-11
2 kg 117-12 126-12 137-12
10 kg 117-14 126-14 137-14



Weight Sets

 Mass Weight  Part No.
 E2 F1  F2
1mg - 500mg  118-22 123-01 138-22
1mg - 50gm  118-02 123-02 138-02
1mg - 100gm  118-03 123-03 138-03
1mg - 200gm  118-04 123-04 138-04
1mg - 500gm  118-05 123-05 138-05
1mg - 1kg  118-06 123-06 138-06
1mg - 2kg  118-07 123-07 138-07
1mg - 5kg  118-08 123-08 138-08
1mg - 10kg  118-09 123-09 138-09
