 Application |

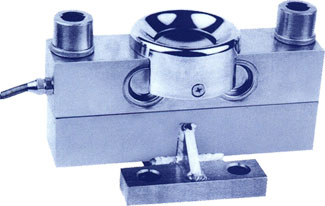

S.E.T.- QS LOAD CELL

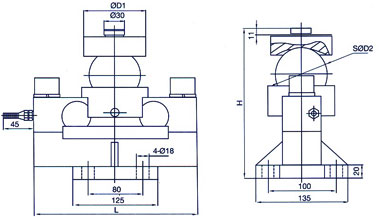

| Rate Load |
5 |
10, 15, 20, 25, 30 |
40 |
| D1 |
68 |
88 |
88 |
| D2 |
50.8 |
67.2 |
76.2 |
| H |
168.8 |
224.7 |
230.7 |
| L |
224 |
240 |
240 |
| Technical Parameter | Exc+(REd); Exc-(Black); Sig+(Green); Sig-(White) |
| Rated Load |
5, 10, 15, 20, 25, 30, 40, 50t |
Operating Temp Range |
-30~ + 70°C |
| Sensitivity |
2.0 ± 0.002mV/V |
Safe load limit |
150, 120(40~50t)%F.S |
| Total error |
± 0.02%FS, ± 0.03%F.S |
Overload limit |
300,200(40~50t)%F.S |
| Creep(30min) |
± 0.02%F.S |
Recommend excitation |
10~ 12V DC |
| Zero balance |
± 1%F.S |
Maximum excitation |
15V DC |
| TCO |
± 0.02%F.S/10°C |
Protection Class |
IP67(5t),IP68(10~50t) |
| TC SPAN |
± 0.02%F.S/10°C |
Construction |
Alloy Steel |
| Input resistance |
150 ± 10Ω |
Cable |
|
| Output resistance |
703 ± 2Ω, 703 ± 5Ω(L≥15m) |
Lenght=L:5.2m(5t), 8m(10t), 12m(20, 25, 20T), 16m(40~50t) |
| Insulation resistance |
L≥5000MΩ |
Diameter: Ø 6mm |
|
|
