S.E.T. ZSd Digital Load Cell

The ZSd is the DIGITAL version of the very successful ZS. S.E.T. integrated a state of the art microprocessor system into the load cell to improve system accuracy, and load cell handling. ZSd rocker column load cells are available in the capacities 30t to 50t and include Accuracy Classificatinos GP, C1,C3, C4, and C6 according to OIML R 60.

The digital output enables the user to communicate with each load cell independently of the others in the system. It offers advantages in system setup, corner adjustment, system calibration, fault finding load cell replacement and higher resistant to lightning strike.

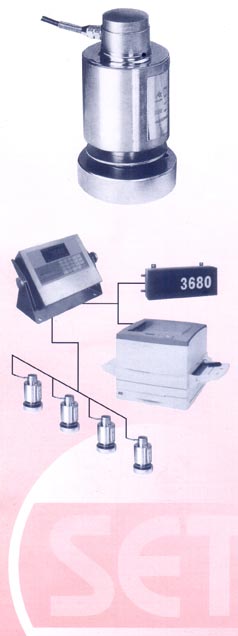

The digital output from the ZSd can be directly connected to a computer, PLC or others. S.E.T. added two more components to help the user with his system configuration; a junction box and weight indicator.

The junction box SET-D connects multiple ZSd load cells. The polyester box is designed to connect 4 to 8 load cells in a bus configuration (cascade) or more (max at 16).

The D2002/equivalent weight indicator (with alibi memory) can be used with analogue load cell and the ZSd load cells. Analogue / Digital load cells selection by parameter setting (depending on model). Programming and calibration of the individual ZSd load cells is possible via the keys available or more comfortly via laptop or PC connected. The unit incorporates the power supply for all ZSd load cells connected. The unit can be connected to a PC system for further data management.

The load cells offer total stainless steel construction and complete hermetic sealing, making them suitable for use in the toughest industrial environments or in truck scales applications.

This load cell design in combination with a low cost self aligning rocker assembly unites excellent load introduction with a low profile outline.

More info..
