SET-QSd

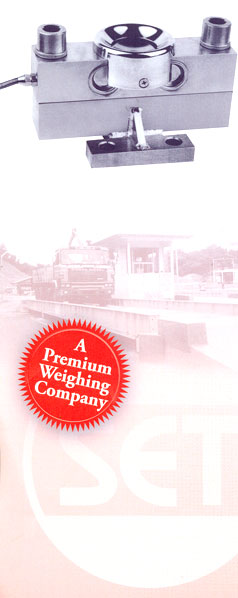

Digital Load Cell for Truck Scale Application

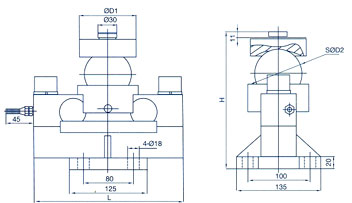

Rate Load	5	10,15,20,25,30	40
D1	68	88	88
D2	50.8	76.2	76.2
H	168.8	224.7	230.7
L	224	240	240

PLATFORM OLONGATION DUE TO THERMAL EXPANSION CAUSES ERRORS IN MEASUREMENT (LOADCELLS SHIFT SIDE TO SIDE)

INFINITY WEIGHBRIDGES ARE IMMUNE TO THERMAL EXPANSION (LOADCELLS STAY UPRIGHT)

Technical Parameter
A/D Module Resolution:	200000 yard
Data refresh rate:	50HZ
Communication baud rate:	9600BPS
Combined Error:	± 0.02%F.S
Creep error (30min):	± 0.02%F.S
Temperature Effection sensivity:	± 0.02%F.S / 10°C
Temperature range:	-30~+70°C
Zero balance:	± 0.1%F.S
Safe overload:	150%F.S
Sealing:	IP68
Recommended input voltage:	9~12VDC
Max input voltage:	20VDC
Max signal transmission distance:	1200m
