CONCRETE Deck Weighbridge
S.E.T.® TRUCKMASTER
 Built for durability without compromising on either quality and accuracy, the modular Concrete Deck TRUCKMASTER is the sure companion in helping you to put your weighing operation fully under control |
What's important in the purchasing decision of a vehicle scale today? Accuracy, speed, dependability, flexibility and value are among the most important considerations. The S.E.T.® TRUCKMASTER Concrete Deck Pitless Weighbridge is designed and manufactured to address these important issues and more.
Believing that the weighbridge is the key area where significant savings can be made, the TRUCKMASTER Concrete Deck Pitless Weighbridge combines unequalled performance of digital technology with an above ground weighbridge and cost effective footer foundation design to provide a superior value to your investment.
The TRUCKMASTER gives you the long term reliability, accuracy, performance and serviceability you have every right to expect from S.E.T.® weighbridge system.
A thorough and deep understanding of weighing system enable us to bring out the finer details in combining today's weighing technology with hardware specific to application, providing the most practical and economical solutions to your needs. We design and build weighbridge that, from the first inception of the project have but only one goal, that is to make you more profitable. We called it "Profit Engineering".
We take great pride in the exceptional quality and value of every weighbridge that we deliver. It's not easy for you to see the extra quality that produces this top value. It's the unseen that makes the difference…..the processes, manufacturing methods and the attitudes that make us one of the most established and longest serving weighing company in the country.

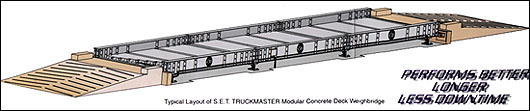

 Typical Layout of S.E.T.® TRUCKMASTER Modular Concrete Deck Weighbridge |
Features and Construction
Constructed in standard modules of 6m and 7.5m long, virtually means weighbridge of any sizes can be configured to meet your specific requirement; there is not even a need to compromise.
Unique design concept offers a high degree of flexibility where the weighbridge can be configured optimally to run either in analog mode for reliable low entry investment or in truly digital mode for those requiring the perfection in technology. Or, you can change from analog to digital mode when situation fits in, without even a need to modify your existing bridge.
Modular Design ensures future expandability; you can, in future, increase the bridge length or change to newer weighing technology readily.
Heavy Duty Composite Concrete Deck ensures unparalleled workability even in the toughest environment and an added side rail as extra security feature.
Installed above ground with 300mm of clearance underneath the bridge makes new installation and future maintenance works easier.
Minimization of excessive ongitudinal and transverse impact forces by employing adjustable bumper stoppers.
Designed and built to 15,000 kg tandem axle load capacity, ensures a reliable workability under heavy loading patterns.
Intergrating readily with our Computerized Weighing System to provide you the weight and data information you need for complete control of your vehicle weighing operation. Specialized weighing software package that fits your industry perfectly an be engineered to help your business to be more profitable.
Employing only the highest quality sensors and electronics to complete the package ensures your investment starts paying for itself the moment they are put into use.
Wide spectrum of auxiliary equipment to further enhance our standard offer, so every purchase fits perfectly to your needs.
Backed by one of the longest serving and largest company in weighing industry, you are assured that your investment gets proper attention and most importantly, you would never need to suffer from extended breakdown time….. as what you're really weighing is actually money….in another form.
DigiTOL
Imporving reliability and accuracy with the true digital technology employed in the DigiTOL Power Cell. The built-in microprocessor monitors the load cell performance and automatically corrects for errors caused by creep, nonlinearity and temperature variance. And most importantly, the built-in microprocessor also performs self-diagnostic program that simplifies service and maintenance. It's like having a scale technician monitoring your scale 15 times a second, 24 hours a day.
The Power Cell provides inherently better protection against static electricity and voltage changes. Transmitting signals at about six million times stronger than conventional cells, signal corruption along the transmittal path is greatly reduced, if not altogether eliminated, providing you unsurpass technology perfection.
Hermetically sealed in stainless steel housing to provide extreme reliability even in the toughest working environment so that it can accurately and reliably determines weight, for years to come.
Standard Weighbridge Configuration
| All standard configured weighbridges are of modular type and built from combinations in multiples of standard 6m and 7.5m modules. |
| Designed tandem axle capacity are 15, 18 and 21 tons respectively for the standard, heavy duty and extra heavy duty modules. |
| Minimum digital increment (Div.) are set conforming to local Weight and Measures Regulations. |

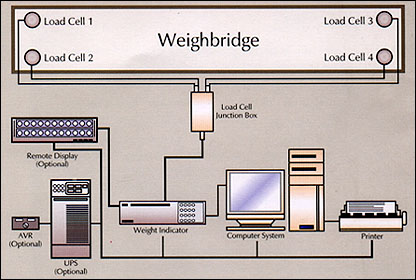

Typical Weighbridge Installation
 |
Highly flexible system with extensive line of options that features widest spectrum of customization to meet specifically your needs, accurately and economically, without even a need to compromise. We built comprehensive systems that make your business more profitable.
|
|
